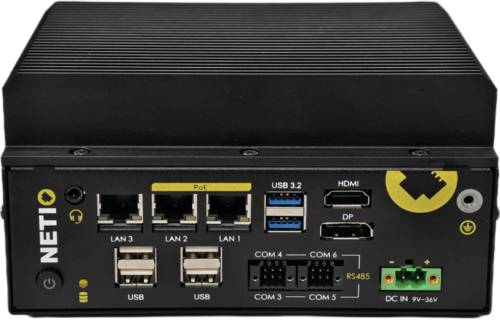

NEDRPC-N97
DIN-Rail lndustrial System
Features
162W x 128.5D x 81.4H (mm)
Intel® N97 Processor
DDR5 4800MT/s
2 x COM (RS232/422/485)
4 x COM (RS485)
3 x GbE LAN Ports
support PoE Power supply
Wide Voltage Input
SPEC
| Model Name | NEDRPC-N97 |
|---|---|
| Processor | Intel® Processor N97 (embedded) Quad Core 2.0GHz |
| EFI BIOS | |
| Memory | 1 x DDR5 4800MT/s SO-DIMM memory slot, maximum 16GB |
| Display | 1 x HDMI 2.1; 1 x 24-bit LVDS (LVDS/EDP optional); 1 x DP1.4; |
| Storage | 1 x M.2 KEY-M 2280 (PCIe_X 2 NVMe) |
| 1 x M.2 Key - B (PCIe /SATA3.0 + USB 2.0 protocol) | |
| Board edge I/O interface | 1 x DC port |
| 1 x DP1.4 | |
| 1 x HDMI 2.1 | |
| 2 x USB 3.0 | |
| 4 x USB2.0 | |
| 3 x RJ45 network ports (3 x i226- V, LAN2 and LAN3 support POE power supply 15W ) |
|
| 1 x two-in-one audio port | |
| 2 x COM (RS232/422/485) | |
| 4 x COM (RS485) | |
| Extended interface/function | 1 x TPM2.0 (optional chip, not included by default) |
| 1 x M.2 Key - B (PCIe /SATA3.0 + USB 2.0 protocol), 1 x SIM card slot | |
| 1 x M.2 Key - E (PCI e _X1 + USB2.0 protocol) | |
| Power supply | DC 9-36V wide voltage |
| Working environment | Working temperature: -20℃ ~ +60℃; Working humidity: 0% ~ 90% relative humidity, no condensation |
| Storage temperature: -40℃ ~ +85℃; Storage humidity: 0% ~ 90% relative humidity, no condensation |
|
| Operating system | Windows 10, Windows 11, Linux |
| Size | W 162 x D 128.5 x H81.4 (mm) |
| Weight | 1.4kg |
For More product information, please download our Datasheet.
