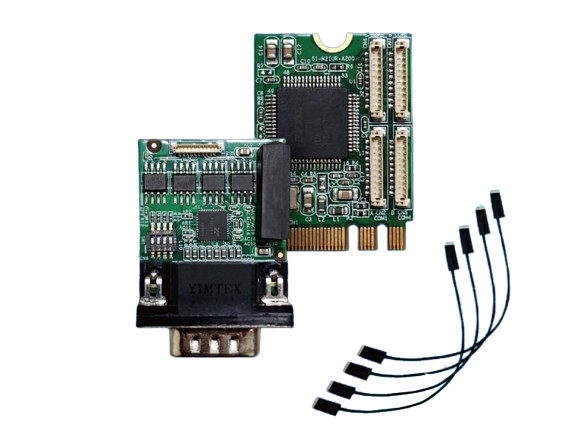

NEM2M-AE4U
M.2 Extension Board
Features
USB 2.0 compliant. RS-232/422/485 mode configurable by switch
30u" golden finger, 3-year warranty
Full RS-232 functions with DB9 connector
Industrial design, manufactured in Taiwan
Industrial temperature -40 °C to 85 °C
Supports UART data transfer rate up to 115200 bps
SPEC
| Model name | M.2 Extension Board-NEM2M-AE4U |
|---|---|
| Module Type | M.2 to four RS-232/422/485 Module |
| Form Factor | M.2 2230 A-E |
| Function | Serial |
| Input I/F | USB 2.0 |
| Output I/F | RS 232/422/485 |
| Output Connector | DB-9 x 4 |
| Supported Operating System | Linux Kernel 2.4 or above Windows 10 32-Bit Windows 10 64-Bit Windows 7 32-Bit Windows 7 64-Bit Windows 8.1 32-Bit Windows 8.1 64-Bit |
| Dimensions(mm) | Serial Port Board: 31W x 42D x 13.12H (mm) M.2 Module: 22W x 30D x 3.54H (mm) |
| Temperature | Operation: W/T temp: -40°C ~ + 85°C |
| Baud Rate | Up to 115200 bps |
For More product information, please download our Datasheet.
Description
NEM2M-AE4U
M.2 to four Isolated RS-232/422/485 Module
Dimension
Serial Port Board: 31W x 42D x 13.12H (mm)
M.2 Module: 22W x 30D x 3.54H (mm)
