Industrial Edge Connectivity Solutions for Smart Manufacturing
At Netiotek, we specialize in intelligent solutions that modernize and connect industrial systems. Our core technologies—Edge IoT Computing, 10BASE-T1L Ethernet, and RS-485 Power over Data Line (PoDL)—are engineered to transform traditional operations into connected, AI-enhanced environments.
Edge Computing | Industrial edge PCs built for SECS/GEM protocols, image analytics, robotic control, and real-time field data processing.
CPU: Intel® Twin Lake N150, 4-core, up to 3.6GHz
I/O: LAN, USB, HDMI, DisplayPort, USB-C, COM
OS: Windows 10/11, Linux
Type: Fanless Industrial PC
Application: Embedded Control, Data Logging, SCADA, Edge Gateway
CPU: Intel® Core i3-N305, 8-core, up to 3.8GHz
I/O: LAN (w/ PoE), USB, HDMI, DisplayPort, COM, SIM
OS: Windows 10/11, Linux
Type: DIN Rail Fanless Industrial PC
Application: Factory Automation, Machine Control, IoT Gateway
CPU: Intel® Core i5-1335U, 10-core, up to 4.6GHz
I/O: LAN, USB, HDMI, DisplayPort, USB-C, COM, SIM
OS: Windows 10/11, Linux
Type: Fanless Industrial PC
Application: Machine Vision, AI Edge Inference, Industrial HMI
CPU: Intel® Core i7-1255U, 10-core
I/O: LAN, USB, HDMI, VGA, COM, Audio
OS: Windows 10/11, Linux
Type: Fanless Industrial PC
Application: Surveillance, Multi-peripheral Integration, Harsh Environment
Edge Computing | Arm-based & Nvidia platforms for AI inference, sensor fusion, machine vision, and long-distance industrial connectivity
CPU/Module:NXP i.MX93, 2-core ARM Cortex-A55, 1.7GHz
GPU / NPU: ARM Ethos-U65 microNPU, 0.5 TOPS
I/O: LAN (w/ TSN), USB, HDMI, RS485, T1L (PoDL), Micro SD
OS:Linux (NXP Yocto)
Type: DIN Rail Fanless ARM Industrial PC
Application: T1L Edge Gateway, IIoT Sensor Hub, Edge ML Inference
CPU/Module: NXP i.MX8M Plus, 4-core ARM Cortex-A53, up to 1.8GHz
GPU / NPU: Integrated AI Accelerator (2.3 TOPS)
I/O: LAN (w/ TSN), USB, HDMI, RS485, T1L (PoDL), Mini-PCIe, M.2, Micro SD
OS: Debian / Yocto / Android
Type: DIN Rail Fanless ARM Industrial PC
Application: Edge AI Inference, IIoT Gateway, Industrial Automation, Smart Factory
CPU/Module: NXP i.MX8M Plus, 4-core ARM Cortex-A53, up to 1.8GHz
GPU / NPU: Integrated AI Accelerator (2.3 TOPS)
I/O: LAN (w/ TSN), USB, HDMI, RS485, T1L (PoDL), Mini-PCIe, M.2, Micro SD
OS: Debian / Yocto / Android
Type: DIN Rail Fanless ARM AI Industrial PC (CAN-FD)
Application: CAN Bus Integration, EV Charging Control, Robotics, Vehicle Gateway
CPU/Module: NVIDIA Jetson Orin Nano 4GB
6-core ARM Cortex-A78AE | 4GB LPDDR5
GPU / NPU: 512-core Ampere GPU + 16 Tensor Cores | 20 TOPS
I/O: LAN (GbE + 2.5GbE, PoE opt.), USB, HDMI, RS232/CAN, RS232/422/485, M.2 (WiFi/4G/5G), Audio
OS: Linux JetPack 6.2
Type: Fanless Jetson AI Edge PC
Application: Entry-Level AI Edge, Object Detection, Predictive Maintenance, Smart Sensing
CPU/Module: NVIDIA Jetson Orin Nano 8GB
6-core ARM Cortex-A78AE | 8GB LPDDR5
GPU / NPU: 512-core Ampere GPU + 16 Tensor Cores | 40 TOPS
I/O: LAN (GbE + 2.5GbE, PoE opt.), USB, HDMI, RS232/CAN, RS232/422/485, M.2 (WiFi/4G/5G), Audio
OS: Linux JetPack 6.2
Type: Fanless Jetson AI Edge PC
Application: Compact AI Inference, Smart Retail, Industrial Inspection, Drone Payload
CPU/Module: NVIDIA Jetson Orin NX 8GB
6-core ARM Cortex-A78AE | 8GB LPDDR5
GPU / NPU: 1024-core Ampere GPU + 32 Tensor Cores | 70 TOPS
I/O: LAN (GbE + 2.5GbE, PoE opt.), USB, HDMI, RS232/CAN, RS232/422/485, M.2 (WiFi/4G/5G), Audio
OS: Linux JetPack 6.2
Type: Fanless Jetson AI Edge PC
Application: AI Edge Inference, Intelligent Video Analytics, Robotics Control
CPU/Module: NVIDIA Jetson Orin NX 16GB
8-core ARM Cortex-A78AE | 16GB LPDDR5
GPU / NPU: 1024-core Ampere GPU + 32 Tensor Cores | 100 TOPS
I/O: LAN (GbE + 2.5GbE, PoE opt.), USB, HDMI, RS232/CAN, RS232/422/485, M.2 (WiFi/4G/5G), Audio
OS: Linux JetPack 6.2
Type: Fanless Jetson AI Edge PC
Application: High-Performance AI Inference, Real-Time Computer Vision, Multi-Camera Analytics
Edge AI | On-prem LLM inference platform for private, secure, and low latency language model deployment
Industrial AI server for on-premise LLM inference and high-performance edge computing.
CPU: Intel® Core Ultra 7 265K (Intel W880 chipset)
GPU: NVIDIA RTX Pro 6000, 96GB VRAM
I/O: LAN (2.5GbE), USB, HDMI, COM, Audio
OS: Windows 11, Linux
Type: 19″ 4U Rackmount AI Server
Application: Local LLM Inference, Generative AI Workload, AI Model Fine-tuning, Private AI Deployment
Industrial Connectivity | Power + Data solutions for long-distance, legacy upgrades, and remote edge deployment
Single-Pair Ethernet converters and switches for long-distance, low power industrial networking over one twisted pair.

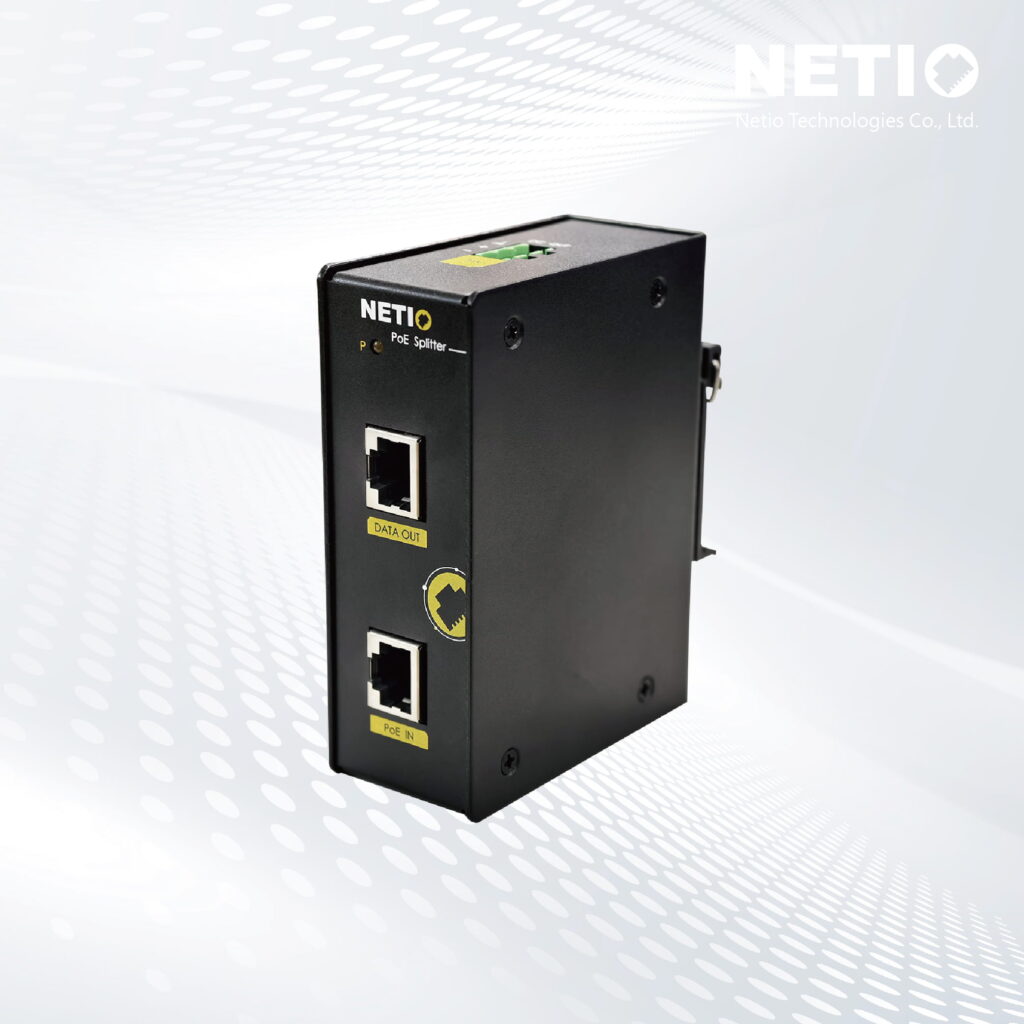

PoE splitters for separating power and data to power non-PoE legacy devices in industrial setups.
Power-over-RS485 inserters and splitters to upgrade Modbus/serial devices with one-cable connectivity.
With over 20 years of experience in ODM manufacturing for industries including military, medical, and railway, we bring proven expertise to every solution. As the industry shifts toward Industry 4.0, our product portfolio now includes: AI-powered DIN-rail Edge IoT Computers, Legacy and next-generation industrial connectivity solutions.
Driven by a vision of intelligent, open, and future-ready automation, Netiotek supports a wide range of advanced applications, with a focus on semiconductor manufacturing, factory automation, and building automation. Our technologies empower OEMs and system integrators to build smarter, more connected environments with scalable, industrial-grade solutions.
NEWS
Edge AI, Industrial IoT, and Long-Distance Connectivity Solutions for Smart Manufacturing and Infrastructure
In addition to co-exhibiting with our partners BIOSTAR and Embedian, we are also participating in the SPE System Alliance conference session…
Smart manufacturing is no longer a distant vision. From the factory floor to warehouse automation, our rugged industrial computers combined with AI software deliver real-time insights and control.
Single Pair Ethernet (SPE) is reshaping industrial connectivity through a range of powerful features: it uses just one twisted pair cable to deliver high-speed data over distances up to 1 kilometer, while also carrying power over the same line.
