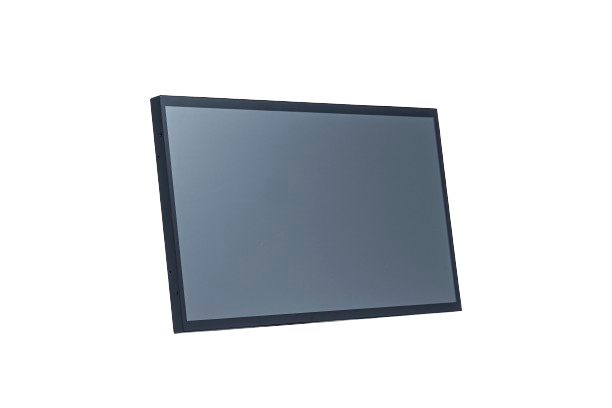

21.5″ Industrial Tocuch Monitor

21.5" PCAP Touch monitor

Industrial Touch Monitor

Products > Industrial Panel PC | HMI > Industrial Touch Monitor > 21.5″ PCAP Touch monitor

Features

Fanless Panel PC

Support RS232/422/485

IP65

2x mini-PCIe
1x VGA

21.6" touch panel

Wide range power input 12~30VDC

SPEC

Model name21.5" PCAP Touch monitor
Panel ProcessAHVA Mode, normally Black
Display Size21.5 inch
Visible Area476.0x267.7 mm
Resolution1920x1080
Aspect Ratio16:9
Color Depth16.7M Colors
Brightness (nits)250/1000/1500 nits
Contrast Ratio1000:1
Pixel Pitch0.24795x0.24795 mm
Response Time22 msec.
Viewing Angle178°/178°
BacklightLED
min. Panel lifetime>50000 hours
Operating Temp.0°~60°C
Storage Temp.-20°~60°C
Touch TechnologyProjected Capacitive
Touch Points10 Finger Touch
Touch InterfaceUSB/RS232 (optionl)
Surface Hardness7H
Glass Thickness2.9 mm (±0.05)
Transparency≧87%
Accuracy≧99%
For more detail, please contact us :

Description

21.5 inch Industrial Grade Panel , 1920×1080 (FHD) Resolution
★ VA Wide Viewing Angle Technology , 178°/178°
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multitouch, Supports Active Stylus
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty

★ Optional Video Input (VGA/DVI/HD MI/DP)
★ Optional 100~240VAC and 9~36VDC Power Input
★ Optional Software Remote Control by RS232
★ Optional High Brightness 1500nits, for Outdoor Environment
★ Optional Auto Dimming Function (with Light Sensor)
★ Optional AG Coating/ Antibacterial /Privacy Filter S urface Treatmen

For more detail, please contact us :
