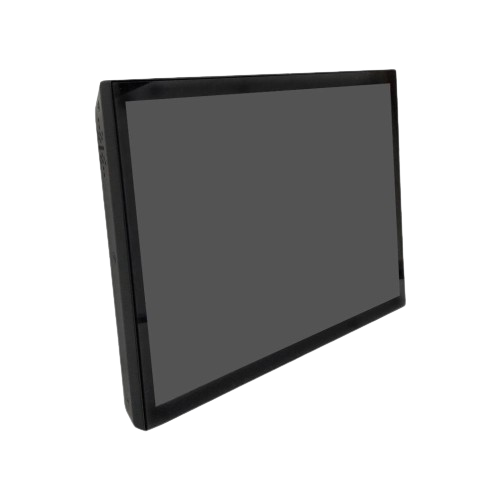

10.1" PCAP Touch Monitor
Industrial Touch Monitor
SPEC
Model name | 10.1" PCAP Touch Monitor | |
---|---|---|
Panel Process | AHVA Type, Normally Black | |
Display Size | 10.1 inch | |
Visible Area | 216.96×135.6 mm | |
Resolution | 1280x800 | |
Display Ratio | 16:10 | |
Color Depth | 1.62M Colors | |
Brightness (nits) | 400 nits | |
Contrast Ratio | 800:1 | |
Pixel Pitch | 0.1695×0.1695 mm | |
Response Time | 29 msec. | |
Viewing Angle | 178°/178° | |
Backlight | LED (white LED) | |
Backlight Lifetime | >30,000 HRS | |
Operating Temp. | -20°- 60°C | |
Storage Temp. | -20°- 60°C | |
Touch Technology | Projected Capacitive | |
Allowed Touch Points | 10 points | |
Thickness of Cover Lens | 1.1 ±0.2mm | |
Hardness of Cover Lens | 7H | |
Accuracy | 99.00% | |
Transparency | ≥ 87% | |
IK Ratings | IK07 | |
For more detail, please contact us :
Description
10.1 inch Wide Screen Industrial Grade Panel, 1280×800 Resolution
★ AHVA Wide Viewing Angle Technology , 178°/178°
★ Wide Operating Temperature Range -20~60℃
★ Narrow Bezel, True Flat Projected Capacitive Touch Screen
★ 7H Hardness Tempered Cover Glass
★ 10 points Multi-touch
★ Metal Cabinet with Diverse Combine Options
★ Made in Taiwan, 3 Years Warranty, Designed for Harsh Environments
★ Optional Software Remote Control by DDC/CI
★ Optional Auto Dimming Function (with Light Sensor)
★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment
