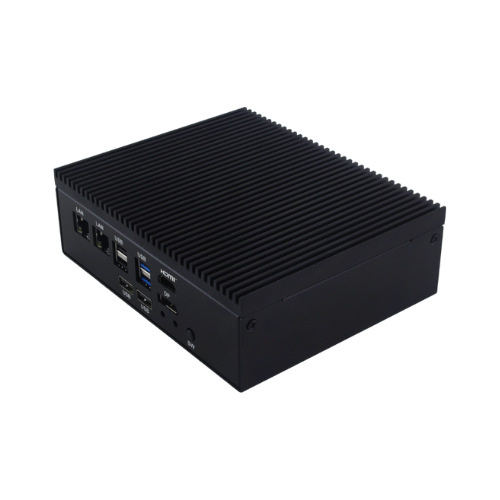

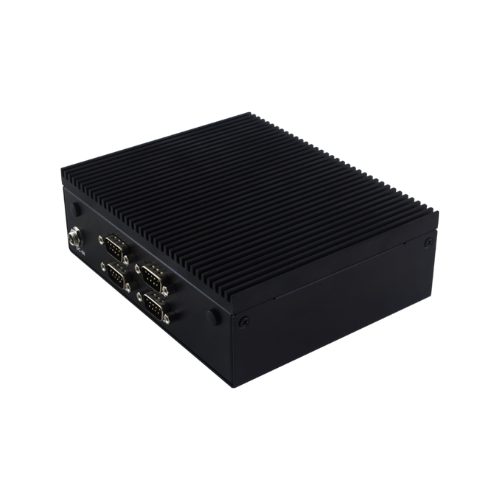

NEDTPC-X7433
無風扇電腦
產品特色
Amston Lake X7433RE
Dual Intel LAN , support 2.5G GbE
1 x HDMI®, 1xDP
1 x DDR5 SO-DIMM up to 32GB
1 x M.2 KeyM, 1 x M.2 KeyB, 1 x Mini PCIe
2 x USB 3.2 Gen 1 & 4 x USB 2.0
4 x COM ports (2xRS232/422/485,2xRS232)
DC-IN 9-24V
產品規格
| Model Name | NEDTPC-X7433 |
|---|---|
| Processor | Intel® Amston Lake X7433RE (4core, up to 3.4GHz, TDP 9W) |
| EFI BIOS | |
| Memory | 1 x DDR5 4800Mhz SO-DIMM, up to 16 GB |
| Display | 1 x HDMI 2.0; 1 x DP1.4 |
| Storage | 1 x M.2 M Key 2242/ 2280 support PCIe3.0 x1/ SATA |
| 1 x SATAIII | |
| Board edge I/O interface | 1 x HDMI® 2.0 |
| 1 x DP 1.4++ | |
| 2 x RJ45 (2.5G GbE) | |
| 2 x USB 3.2 Gen1 | |
| 4 x USB 2.0 | |
| 1 x Power LED / 1 x HDD LED | |
| 1 x Power Key | |
| 2 x RS232/422/485 ; 2 X RS232 | |
| 1 x DC jack support 12-19V. | |
| Extended interface/function | 1 x M.2 B key 3042/3052 support PCIe3.0 x1 + USB3.2 w/ SIM slot |
| 1 x Mini PCIe support PCIe3.0 x1 +USB2.0 for WIFI/BT module. | |
| Power supply | DC 9-24V wide voltage |
| Working environment | Working temperature: -20℃ ~ +60℃; Working humidity: 0% ~ 90% relative humidity, no condensation |
| Storage temperature: -20℃ ~ +70℃; Storage humidity: 0% ~ 90% relative humidity, no condensation |
|
| Operating system | Windows 10, Windows 11, Linux |
| Size | 160 x 130 x 52 mm |
| Weight | TBD |
