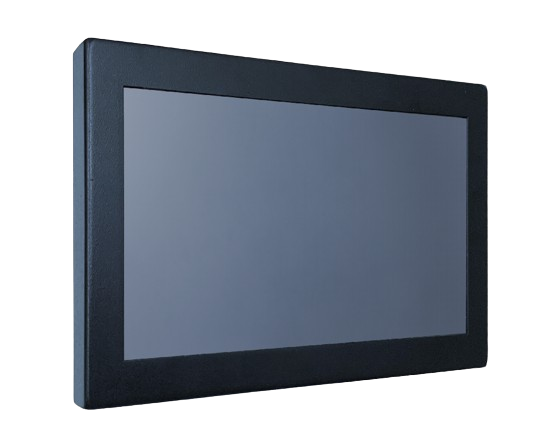

7" 觸控電腦 (intel N3350/4200)
工業平板電腦
產品規格
| Model name | 7" Touch PC (intel N3350/4200) | |
|---|---|---|
| CPU | Intel® Celeron/Pentium Processor | |
| Memory | DDR3 SO-DIMM 8G | |
| Storage | SATAx1, M.2 M-key (SATA 6Gb/s) x1, Full-size Mini PCIe Slot x1 | |
| GPU Chip | Intel® HD Graphics 500 | |
| Sound Chip | Realtek® Audio CODEC | |
| Network | Intel® i211AT Gbe LAN Chips x2 | |
| Panel Process | TN Mode, Normally White | |
| Display Size | 7 inch | |
| Visible Area | 152.4x91.44 mm | |
| Resolution | 800×480 | |
| Color Depth | 16.2M Colors | |
| Brightness (nits) | 400 / (Optional) 1000 / (Optional) 1500 nits | |
| Contrast Ratio | 1000:1 | |
| Pixel Pitch | 0.1905×0.1905 mm | |
| Response Time | 8 msec. | |
| Viewing Angle | 160°/160° | |
| Backlight | LED | |
| min. Panel lifetime | >50,000 HRS | |
| Operating Temp. | -30°~85°C | |
| Storage Temp. | -30°~85°C | |
| Touch Technology | Projected Capacitive | |
| Allowed Touch Points | 10 points | |
| Thickness of Cover Lens | 2.0±0.2mm | |
| Hardness of Cover Lens | 7H | |
| Accuracy | 99.00% | |
| Transparency | ≥ 87% | |
| IK Ratings | IK07 | |
產品描述
7吋工控等級面板, 800×480解析度
★ 廣溫液晶製程, 耐受溫度-30~85度
★ Intel® Quad-Core N3350/N4200 CPU
★ DDR3 8G DRAM
★ 投射式電容觸控，強化玻璃硬度7H
★ 10點觸控，支援主動式繪圖級觸控筆
★ 金屬外殼，搭配多樣化的安裝支架選項
★ 台灣製造，三年保固，適用各種嚴苛環境
★ 最大亮度可達1500nits，適用室外環境 (選配)
★ 抗眩光/防窺/抗菌膜等表面處理 (選配)
