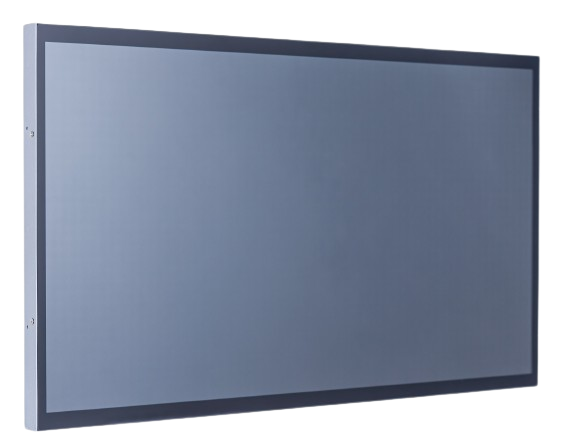

23.8" 觸控電腦 ( intel Core i3/i5/i7 )
工業平板電腦
產品規格
| Model name | 23.8" Touch PC ( intel Core i3/i5/i7 ) | |
|---|---|---|
| CPU | Intel® 11 th Generation Core i Series CPU | |
| Memory | DDR4 SO DIMM x2, Max. 64 G | |
| Storage | Ultra Fast M.2 with PCle Gen3 x2, SATA 6Gb/s x1 | |
| GPU Chip | Intel® UHD Graphics | |
| Sound Chip | IRealtek® Audio CODEC | |
| Network | ntel Gigabit LAN, RJ45 ports x2 | |
| Panel Process | VA Mode, Normally Black | |
| Display Size | 23.8 inch | |
| Visible Area | 527.04x296.46 mm | |
| Resolution | 1920x1080 (FHD) | |
| Color Depth | 16.7M Colors | |
| Brightness (nits) | 400 / (Optional) 1000 / (Optional) 1500 nits | |
| Contrast Ratio | 1000:1 | |
| Pixel Pitch | 274.5x274.5 um | |
| Response Time | 16 msec. | |
| Viewing Angle | 178°/178° | |
| Backlight | LED (white LED) | |
| min. Panel lifetime | >30000 hours | |
| Operating Temp. | 0°-50°C | |
| Storage Temp. | -20°-60°C | |
| Touch Technology | Projected Capacitive | |
| Allowed Touch Points | 10 points | |
| Thickness of Cover Lens | 2.9±0.2mm | |
| Hardness of Cover Lens | 7H | |
| Accuracy | 99.00% | |
| Transparency | ≥ 87% | |
| IK Ratings | IK07 | |
產品描述
23.8 吋寬螢幕工規等級面板，1920×1080 (FHD) 解析度
★ AHVA 廣視角製程 (178°/178°)
★ Intel® Quad-Core N3350/N4200 CPU
★ DDR3 8G DRAM
★ 窄邊框全平面投射式電容觸控，強化玻璃硬度7H
★ 10 點觸控，支援原鑫專用觸控筆
★ 金屬外殼，搭配多樣化的安裝支架選項
★ 台灣製造，三年保固
★ 最大亮度可達1500nits，適用室外環境 (選配)
★ 抗眩光/防窺/抗菌膜等表面處理 (選配)
