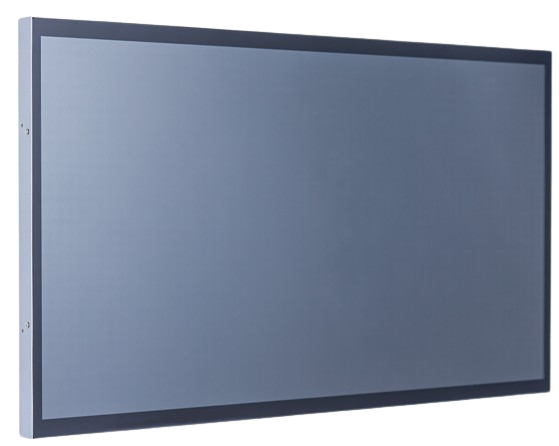

21.5" 觸控電腦 (intel Core i3/i5/i7)
工業平板電腦
產品特色
Fanless Panel PC
Support RS232/422/485
IP65
2x mini-PCIe
1x VGA
21.5" touch panel
Wide range power input 12~30VDC
產品規格
| Model name | 21.5" Touch PC (intel Core i3/i5/i7) | |
|---|---|---|
| CPU | Intel® 11t h Generation Core i Series CPU | |
| Memory | DDR4 SO DIMM x2, Max. 64 G | |
| Storage | Ultra-Fast M.2 with PCIe Gen3 x2, SATA 6Gb/s x1 | |
| GPU Chip | Intel® UHD Graphics | |
| Sound Chip | Realtek® Audio CODEC | |
| Network | Intel Gigabit LAN, RJ45 ports x2 | |
| Panel Process | AHVA, Normally Black | |
| Display Size | 21.5 inch | |
| Visible Area | 476.0x267.7 mm | |
| Resolution | 1920x1080 (FHD) | |
| Aspect Ratio | 16:9 | |
| Color Depth | 16.7M Colors | |
| Brightness (nits) | 250 nits | |
| Contrast Ratio | 1000:1 | |
| Pixel Pitch | 274.95x274.95 um | |
| Response Time | 22 msec. | |
| Viewing Angle | 178°/178° | |
| min. Panel lifetime | >50,000 HRS | |
| Operating Temp. | 0°~50°C | |
| Storage Temp. | -20°~60°C |
產品描述
21.5 吋 16:9 寬螢幕，1920×1080 (FHD) 解析度
★ AHVA 廣視角製程 (178°/178°)
★ Intel® 11th Generation Core i Series CPU
★ DDR4 8G RAM 最大支援64G
★ 窄邊框全平面投射式電容觸控，強化玻璃硬度 7H
★ 10 點觸控，支援主動式繪圖級觸控筆
★ 金屬外殼，搭配多樣化的安裝支架選項
★ 台灣製造，三年保固
★ 最大亮度可達 1500nits，適用室外環境 (選配)
★ 抗眩光/防窺/抗菌膜等表面處理 (選配)
