15.6" 觸控電腦 (intel N3350/4200) - 展嘉科技
Netio Technologies Co., Ltd
展嘉科技

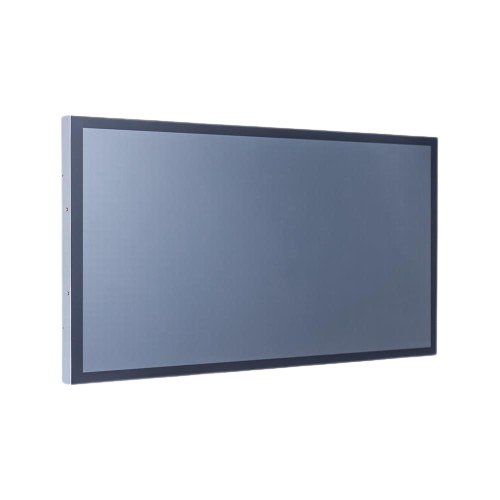

15.6″ 觸控電腦 (intel N3350/4200)

15.6" 觸控電腦 (intel N3350/4200)

工業平板電腦

產品特色

Fanless Panel PC

Support RS232/422/485

IP65

2x mini-PCIe
1x VGA

21.5" touch panel

Wide range power input 12~30VDC

產品規格

Model name15.6" Touch PC (intel N3350/4200)
CPUIntel® Celeron/Pentium Processor
MemoryDDR3 SO-DIMM 8G
StorageSATAx1, M.2 M-key (SATA 6Gb/s) x1, Full-size Mini PCIe Slot x1
GPU ChipIntel® HD Graphics 500
Sound ChipRealtek® Audio CODEC
NetworkIntel® i211AT Gbe LAN Chips x2
Panel ProcessAHVA, Normally Black
Display Size15.6 inch
Visible Area344.2x193.6 mm
Resolution1920x1080
Aspect Ratio16:9
Color Depth16.7M Colors
Brightness (nits)500 nits
Contrast Ratio1000:1
Pixel Pitch0.17925x0.17925 mm
Response Time25 msec. (Typ.)
Viewing Angle178°/178°
BacklightLED
min. Panel lifetime>50,000 HRS
Operating Temp.-20°~70°C
Storage Temp.-20°~70°C

產品描述

15.6吋寬螢幕工規等級面板,1920×1080 (FHD) 解析度
★ AHVA廣視角製程, 178°/178°
★ 廣溫液晶製程, 耐受溫度-20~70度
★ Intel® Quad-Core N3350/N4200 CPU
★ DDR3 8G DRAM

★ 窄邊框全平面投射式電容觸控,強化玻璃硬度7H
★ 10點觸控,支援主動式繪圖級觸控筆
★ 金屬外殼,搭配多樣化的安裝支架選項
★ 台灣製造,三年保固,適用各種嚴苛環境
★ 最大亮度可達1500nits (選配)
★ 抗眩光/防窺/抗菌膜等表面處理 (選配)

更多相關資訊,請與我們聯繫:
