13.3" 觸控電腦 (intel N3350/4200) - 展嘉科技
Netio Technologies Co., Ltd
展嘉科技

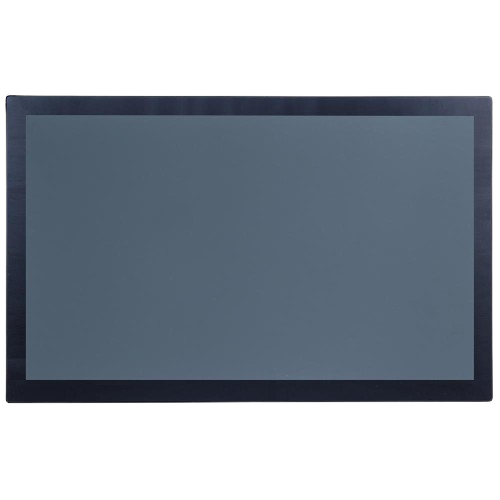

13.3″ 觸控電腦 (intel N3350/4200)

13.3" 觸控電腦 (intel N3350/4200)

工業平板電腦

產品特色

Fanless Panel PC

Support RS232/422/485

IP65

2x mini-PCIe
1x VGA

10.1" touch panel

Wide range power input 12~30VDC

產品規格

Model name13.3" Touch PC (intel N3350/4200)
CPUIntel® Celeron/Pentium Processor
MemoryDDR3 SO-DIMM 8G
StorageSATAx1, M.2 M-key (SATA 6Gb/s) x1, Full-size Mini PCIe Slot x1
GPU ChipIntel® HD Graphics 500
Sound ChipRealtek® Audio CODEC
NetworkIntel® i211AT Gbe LAN Chips x2
Panel ProcessAHVA Mode
Display Size13.3 inch
Visible Area293.47x165.07 mm
Resolution1925x1080 (FHD)
Color Depth16.7M Colors
Brightness (nits)400 / (Optional) 1000 / (Optional) 1500 nits
Contrast Ratio1000:1
Display Ratio16:9
Pixel Pitch0.15285x0.15285 mm
Response Time25 msec.
Viewing Angle178°/178°
BacklightLED(white LED)
min. Panel lifetime>50,000 HRS
Operating Temp.-20°~70°C
Storage Temp.-20°~70°C
Touch TechnologyProjected Capacitive
Allowed Touch Points10 points
Thickness of Cover Lens2.0±0.2mm
Hardness of Cover Lens7H
Accuracy99.00%
Transparency≥ 87%
IK RatingsIK07

產品描述

13.3 吋16:9 工控等級寬螢幕面板,1920×1080 (FHD) 解析度
★ AHVA 廣視角製程 (178°/178°)
★ 廣溫液晶製程, 耐受溫度-20~70 度
★ Intel® Quad-Core N3350/N4200 CPU
★ DDR3 8G DRAM
★ 窄邊框全平面投射式電容觸控,強化玻璃硬度7H

★ 10 點觸控,支援原鑫專用觸控筆
★ 金屬外殼,搭配多樣化的安裝支架選項
★ 台灣製造,三年保固
★ 最大亮度可達1500nits,適用室外環境 (選配)
★ 抗眩光/防窺/抗菌膜等表面處理 (選配)

更多相關資訊,請與我們聯繫:
