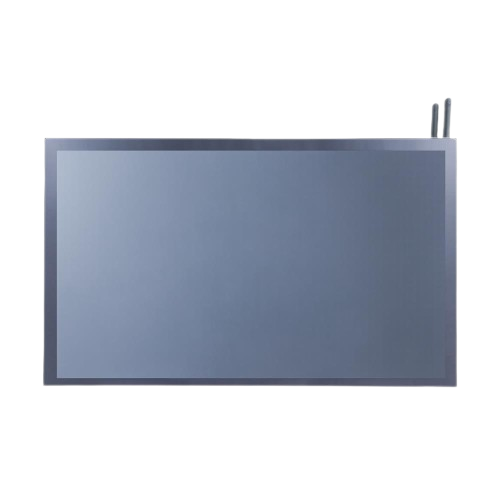

10.1″ 觸控電腦 (intel N3350/4200)

10.1" 觸控電腦 (intel N3350/4200)

工業平板電腦

產品特色

Fanless Panel PC

Support RS232/422/485

IP65

2x mini-PCIe
1x VGA

10.1" touch panel

Wide range power input 12~30VDC

產品規格

Model name10.1" Touch PC (intel N3350/4200)
CPUIntel® Celeron/Pentium Processor
MemoryDDR3 SO-DIMM 8G
StorageSATAx1, M.2 M-key (SATA 6Gb/s) x1, Full-size Mini PCIe Slot x1
GPU ChipIntel® HD Graphics 500
Sound ChipRealtek® Audio CODEC
NetworkIntel® i211AT Gbe LAN Chips x2
Panel ProcessAHVA Type, Normally Black
Display Size10.1 inch
Visible Area216.96x135.6 mm
Resolution1280x800
Aspect Ratio16:10
Color Depth16.7M Colors
Brightness (nits)400 nits
Contrast Ratio800:1
Pixel Pitch0.1695x0.1695 mm
Response Time29 msec. (Typ.)
Viewing Angle178°/178°
BacklightLED
min. Panel lifetime>30,000 HRS
Operating Temp.-20°~60°C
Storage Temp.-20°~60°C
Surface TreatmentHard Coating

產品描述

10.1吋寬螢幕工控等級面板, 1280×800解析度
★ AHVA 廣視角製程 (178°/178°)
★ 廣溫液晶製程, 耐受溫度-20~60度
★ Intel® Qu ad Core N3350/N4200 CPU
★ DDR3 8G DRAM

★ 窄邊框全平面投射式電容觸控,強化玻璃硬度7H
★ 10 點 觸控 支援主動式繪圖級觸控筆
★ 金屬外殼,搭配多樣化的安裝支架選項
★ 台灣製造,三年保固,適用各種嚴苛環境
★ 最大亮度可達 1500nits (選配)
★ 抗眩光/防窺/抗菌膜等 表面處理 (選配)

更多相關資訊,請與我們聯繫:
